Ponds are a great addition to homes, however they do require some careful considerations to avoid making any critical mistakes. Before beginning, the first step to consider is to decide what type of pond you want to build. You should consider what type of aquatic life you want in the pond. Is it going to be a home for goldfish or koi? Or is your main concern for the aquatic plants? Perhaps you only want the pond for the sound of a waterfall. Each type of water feature will need to be planned for its specific features. Keep in mind that the most common mistake water gardeners say they made when building their first pond was making it too small. A small pond limits the number of fish and plants you can add.
1. Choose Pond Type
Koi Pond
A koi pond is different from a water garden because koi limits the amount of plant life available to be grown. Simply put: koi eat some plants. A koi pond should also be larger because koi get quite large despite the size of the pond, it is recommended that a koi pond be no less than 1000 gallons in volume, the bigger the better. It also needs to have an area of the pond at least 3 feet deep, 4 – 5 may be better.
Water Garden
A water garden typically contains both goldfish and a variety of aquatic plants. Water gardens in moderate climates usually need for an area of the pond to be at least 2 feet deep. Colder climates require a depth to provide at least 12″ to 16″ of water below the freeze zone.
Read more on Koi Ponds vs Water Gardens
Disappearing Fountain or Waterfall
Also called pond-less waterfalls or fountains, these features do not have an open body of water, the water disappears below the surface. Read more on disappearing features.
2. Choose a Location
Most ponds will be enjoyed more if they are installed close to the home. Select an area where you can see the pond year round. Take note of where your outdoor time is spent. If you have a typical sitting area on a deck or patio then positioning the pond where it can be seen from this vantage point will increase your enjoyment.
Ponds are great at attracting wildlife including birds and butterflies. Frogs or toads are also expected to join the pond environment. Breeding season for these amphibian friends can be noisy, so placing the pond outside a bedroom window can be a mistake.
Position the pond where runoff from rain will not flow into the pond. This may carry fertilizers, chemicals, and organic debris into the pond. It may be necessary to alter the terrain to accommodate this. Related to this, a low lying area may seem like a natural location for the pond, but the heavy ground water in this area can pose problems for our lined ponds.
Avoid placing a pond too close to trees. Falling leaves and other debris will need to be removed from the pond. You will want to place your pond where it will receive at least 5 to 6 hours of direct sun if you want to grow water lilies and many other aquatic plants. Shade is fine for fish-only ponds.
3. Decide on Pond Size
The best way to figure out your ideal pond size is to use a rope or water hose and lay out the shape on the ground. This helps visualize the pond in your landscape. A pond for goldfish or water lilies need be only about 2 feet deep for zones 5 or greater. Ponds built in colder areas may need more depth to keep the pond from freezing solid. Ponds built for koi should be 3 feet or deeper to allow these larger fish enough space.
The biggest mistake that most people make is building the pond or water garden too small. A larger pond is more stable and easier to maintain. Keep in mind that a finished pond or water garden will usually be about 30% smaller than you visualize it. Planning the largest pond that your available space and budget will allow will increase the enjoyment potential of the water feature.
4. Select Components
The next step is to determine and purchase the equipment needed to create the pond you have planned. This is a step that can make or break the long-term success you have in pond-keeping so take your time and make sure you do this right.
Your main components will be the liner, pump, skimmer, filter, waterfall, ultraviolet light, and plumbing. See our overview of Pond Components for more details.
5. Digging The Pond
Once you’ve determined the type of pond you want to build, location, size, shape, and components, it’s time to build! Below details some important points when building the pond.
Whether you dig the whole pond with a shovel or use heavy equipment depends on the pond size, your soil structure, your abilities, and your personal preferences. Even if using an excavator to do most of the digging, be prepared for some shaping with a shovel.
Dig To The Desired Shape

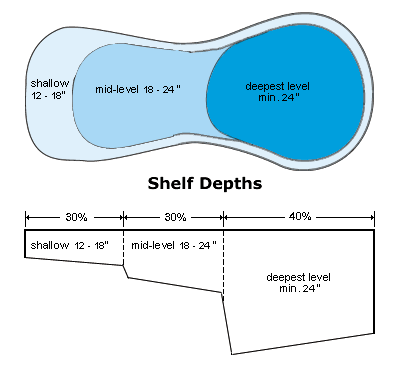

If keeping plants, dig a shelf around the perimeter of the pond about one foot deep and one or more feet wide. Most ponds will have about ⅓ of the area for the deep zone, ⅓ for a mid-level zone, and ⅓ for the shallow area and plant shelf. The layout of where the deep zone is in relation to the waterfall will depend on exactly what other equipment is being used. Example, when using a skimmer as the only intake you will want the skimmer in a shallow area and the waterfall falling into the deep zone. But if the intake is from a pump in the pond or through a bottom drain then this should be in the deep zone and opposite the waterfall.
6. Install Pond Filters & Skimmers
Position any external pond filters and/or pond skimmers and level these in their proper location. Pond skimmers should be buried to the proper level beside the pond. A trench should be dug for the plumbing from the pond to the waterfall or external pond filter. If a pond skimmer is being used, dig a trench to the external pond pump and from the pump to the external pond filter or waterfall. If you are using a submersible pump in the pond skimmer then the trench will be from the skimmer to the external pond filter or waterfall.
7. Install Pond Underlayment
Line the pond or water garden excavation with pond underlayment. This can be cut with scissors or a utility knife. You may want to tape any small pieces together to keep them from moving when the pond liner is placed. To properly protect the pond liner, you will want underlayment under all portions of where the liner will be placed.
8. Rubber Pond Liner
Place the rubber pond liner into the excavation and unfold. Position the liner evenly in the pond. Try to minimize folds and wrinkles but some will be necessary. After the water is added many folds should flatten out. Do not trim what seems to be excess liner until the pond is full of water as this may pull more liner into the hole.
9. Excavate Waterfalls and Streams
At this step, the pond waterfalls and streams can be excavated now. An external pond filter or waterfall tank can be positioned to create the first waterfall. This can be placed to spill directly into the pond in which case the pond liner is held against the pond filter until you are able to stack stone from the pond shelf up against the pond filter to create a waterfall.
If a small pool or stream is desired then excavate this several inches deep and to the desired size and shape. Position the underlayment and pond liner allowing extra material to overlap several inches into the pond. Plumbing from the pump can be brought over into the stream or pool or again if using an external pond filter this will be the start of the waterfall. Streams should be dug wider than the finished size to make room for stone that will be placed into the stream for the edging. Stone can be secured to the liner with mortar or expandable waterfall foam. This will hold back the water allowing it to spill over the stone creating the waterfall.
To avoid having a stream that looks like a ditch, this area can be excavated as a series of wide stairs. Line the area with pond liner and use strategically placed rocks to shape the stream and falls.
10. Connect The Pond Liner to the Skimmer
Connect the pond liner to the skimmer, if one is being used, following the manufacturers directions. Place the pipe or tubing in place leaving a few inches extra to make your connections later.
11. Place the Pond Edging
Place the stone or other coping around the edge of the pond or water garden. Arrange the coping stone around the edge of the pond and fold the pond liner up behind the stone to slightly above the water level. It is usually not necessary to mortar the stone into place if it is of sufficient size to be stable.
If using small stone or if people will be walking around the edge then mortaring the stone for stability may be required. Back fill with soil to hold the pond liner against the stone. Fill the pond with water to within a few inches from the top and then make corrections if necessary to ensure that the pond is level. As the pond is filling remove wrinkles and make folds as necessary.
Making the Pond More Natural-Looking
For most installations, having a necklace of stone around the pond or water garden does not create a natural appearance. If your goal is to make your pond blend into the landscape in a natural setting then you will want to consider other methods of edging the pond. Besides the traditional method of edging with a thin stone on the edge overlapping the pond you can also use one or more layers of stone built up from the shelf. This provides a more natural appearance and will allow the water to fluctuate without seeing the liner. You can also create a cobblestone beach edging by placing a large stone at the inside of a large shallow shelf and filling the area with gravel and cobbles. You can naturalize this area by planting shallow water plants. This will create a more natural edge with plants partly in and partly out of the water. You can plant bare root plants directly into the gravel or place the plant with some soil still attached into the gravel. This will help the plant to establish quicker.
11. Final Steps
Start up the Pump
Connect all plumbing and turn on the pump. Run the pump for a period of time to ensure no leaks seem to be present.
Add a Dechlorinator
Add a dechlorinator to the pond to remove any chlorine or chloramines before adding fish.
Select and Add Aquatic Plants
Add aquatic plants as soon as possible after constructing the pond or water garden. Many aquatic plants are great at using up the nutrients that would otherwise feed the algae. Some of the most effective plants include Anacharis, Water Hyacinth, Parrot’s Feather, and Bacopa. Water lilies and other plants with surface leaves can be added to provide shade to approximately 66% of the surface area if in full sun. If less than full sun then less coverage is acceptable.
Jumpstart the Filtration and Ecosystem
Begin regular use of a packaged bacteria to seed the pond filter and help maintain a clean and healthy pond. Ideally, fish should be added a few at a time over several weeks to allow the bacteria to establish in your water garden.
